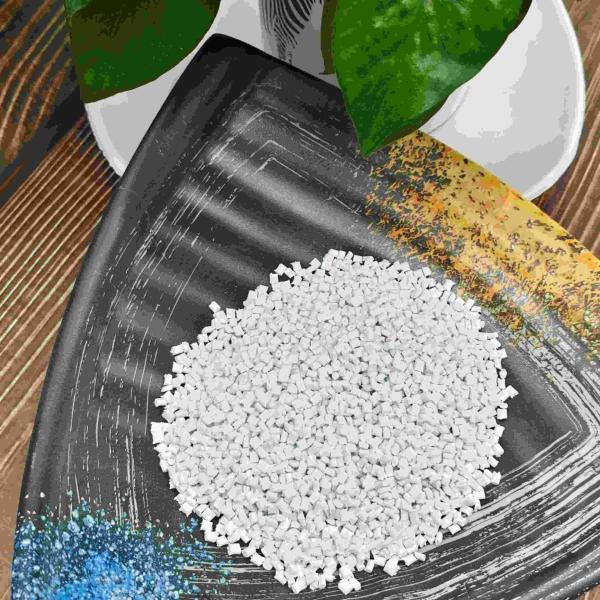

UL94 V-0 Certified PBT Resin with Glass Fiber: Halogen-Free
Material for LED Lighting and Thin-Wall Molding
Typical properties of Modified PBT
| Properties | Test Condition | Test Method | Unit | Typical Value |
| Physical | ||||
| Specific Gravity | ASTM D792 | - | 1.42 | |
| Molding Shrinkage | ASTM D955 | % | 1.2 ~ 2.0 | |
| Melt Flow Rate | 250ºC/2.16kg | ASTM D1238 | g/10min | 18 |
| Water Absorption | 23ºC, 24hrs | ASTM D570 | % | 0.08 |
| Mechanical | ||||
| Tensile Strength, 3.2mm | ASTM D638 | |||
| Yield | 50mm/min | kg/cm2 | 520 | |
| Flexural Strength, 3.2mm | 1.3mm/min | ASTM D790 | kg/cm2 | 820 |
| Flexural Modulus, 3.2mm | 1.3mm/min | ASTM D790 | kg/cm2 | 22,000 |
| IZOD Impact Strength, 6.4mm | ASTM D256 | |||
| (Notched) | 23ºC | kg·cm/cm | 6.0 | |
| Thermal | ||||
| Melt Temperature | ASTM D3418 | ºC | 223 | |
| Heat Deflection Temperature, 6.4mm | ASTM D648 | |||
| (Unannealed) | 18.6kg | ºC | 62 | |
| 4.6kg | ºC | |||
| Flammability | UL94 | |||
| 0.71mm | class | V-0 | ||
| 1.5mm | class | V-0 | ||
| 3.0mm | class | V-0, 5VA | ||
| Relative Temperature Index | UL 746B | |||
| Electrical | ºC | 130 | ||
| Mechanical with Impact | ºC | 130 | ||
| Mechanical without Impact | ºC | 140 |
Production Description
Premium-grade PBT material features enhanced load-bearing capacity,
thermal stability, and anti-aging characteristics. Complying with
global environmental regulations and UL standards, it's applied in
LED housing components, hybrid cooling elements, and industrial
bobbin manufacturing.
The application fields are similar to thermal conductive PA, and it
is mainly used in large-sized lighting fixtures with high toughness
requirements
